C-01
LANDING DOORS
“Architecture’s popular choice with strong construction and easy installation…”
MECHANISMS

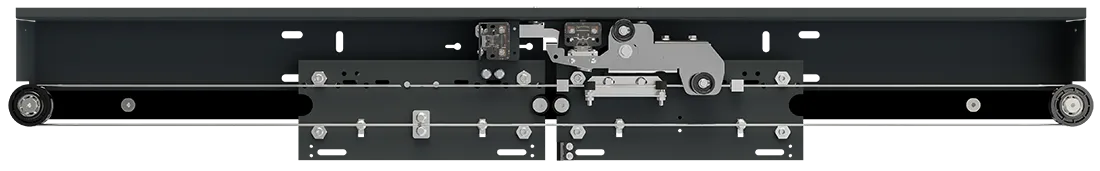

Central 2 Panel

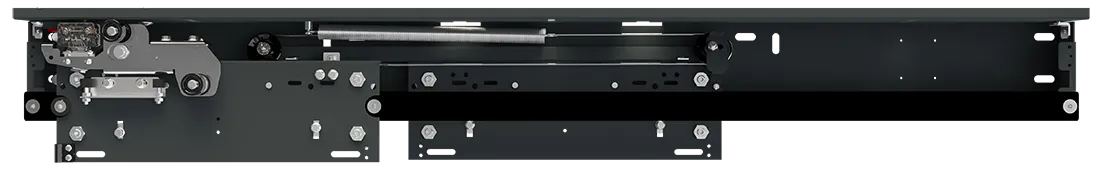

Telescopic 2 Panel
EN 81-58 | EN 81-20 / 50 | CE | EAC
TECHNICAL SPECIFICATIONS
| DOOR TYPE | DRAWING | DOOR WIDTH (Minimum) | DOOR WIDTH (Maximum) | CLEAR HEIGHT (Standard) | CLEAR HEIGHT (Maximum) | E | EI | EW | SURFACE FINISHING |
|---|---|---|---|---|---|---|---|---|---|
| M2P |  | 700 mm | 900 mm | 2000 mm | 2300 mm | 120 | 45 | 60 | Ral Colors Stainless |
| T2P |  | 700 mm | 900 mm | 2000 mm | 2300 mm | 120 | – | 60 | Ral Colors Stainless |
ÜRÜN DOKÜMANLARI
Technical Documents
Assembly & Mapkit
CE Documents
Pendulum Certificate
Fire Resistance Documents
Technical Documents
Technical Documents
Assembly & Mapkit
CE Documents
Pendulum Certificate
Fire Resistance Documents
 | C-01 KLT004 Lock Certificate | 10-12-2021 | 10-12-2026 | DOWNLOAD |
| C-01 KLT004 Lock Certificate Russia | 04-08-2022 | 04-08-2027 | DOWNLOAD |
| C-01 KLT006 Lock Certificate | 10-12-2021 | 10-12-2026 | DOWNLOAD |
| C-01 MLT – Operation Instruction | DOWNLAOD |
| C-01 MLT – Central 2 Panel – Technical Catalog | DOWNLOAD |
| C-01 MLT – Telescopic 2 Panel – Technical Catalog | DOWNLOAD |
 | C-01 MLT – Central 2 Panel – DWG Drawing | DOWNLOAD |
| C-01 MLT – Telescopic 2 Panel – DWG Drawing | DOWNLOAD |
| C-01 Central 2 Panel – EN 81-20/50 | 14-07-2023 | 13-07-2024 | DOWNLOAD |
| C-01 Telescopic 2 Panel – EN 81-20/50 | 14-07-2023 | 13-07-2024 | DOWNLOAD |
| Certificate Name | E | EI | EW | Date | Valid Until | ||
|---|---|---|---|---|---|---|---|
| C-01 – Central 2 Panel | 120 | – | – | 07-10-2021 | 07-10-2026 | DOWNLOAD |
| C-01 – Telescopic 2 Panel | 120 | – | – | 07-10-2021 | 07-10-2026 | DOWNLOAD |
| C-01 – Central 2 Panel – RU | 30 | – | – | 27-06-2022 | 26-06-2027 | DOWNLOAD |
| C-01 – Central 2 Panel – RU | – | 60 | – | 27-06-2022 | 27-06-2027 | DOWNLOAD |
| C-01 – Telescopic 2 Panel – RU | 30 | – | – | 27-06-2022 | 27-06-2027 | DOWNLOAD |
| C-01 – Telescopic 2 Panel – RU | – | 60 | – | 27-06-2022 | 27-06-2027 | DOWNLOAD |
| C-01 – Central 2 Panel – UA | 120 | – | – | 02-12-2022 | 01-12-2023 | DOWNLOAD |
| C-01 – Telescopic 2 Panel – UA | 120 | – | – | 02-12-2022 | 01-12-2023 | DOWNLOAD |
| C-01 – Telescopic 2 Panel – UA | – | 45 | – | 02-12-2022 | 01-12-2023 | DOWNLOAD |
